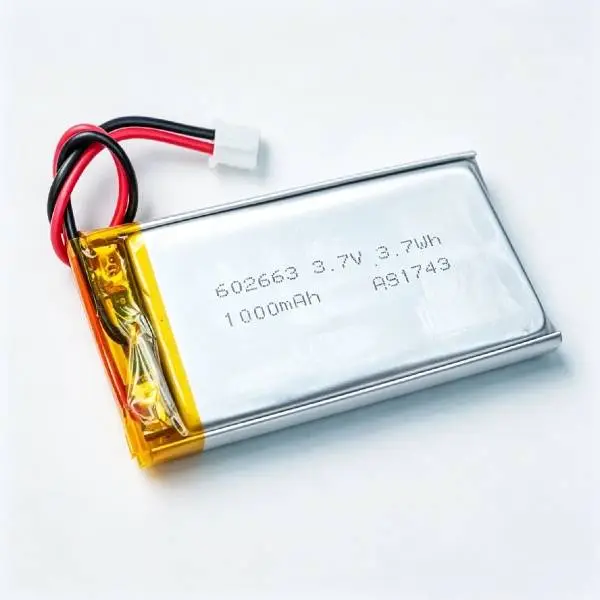

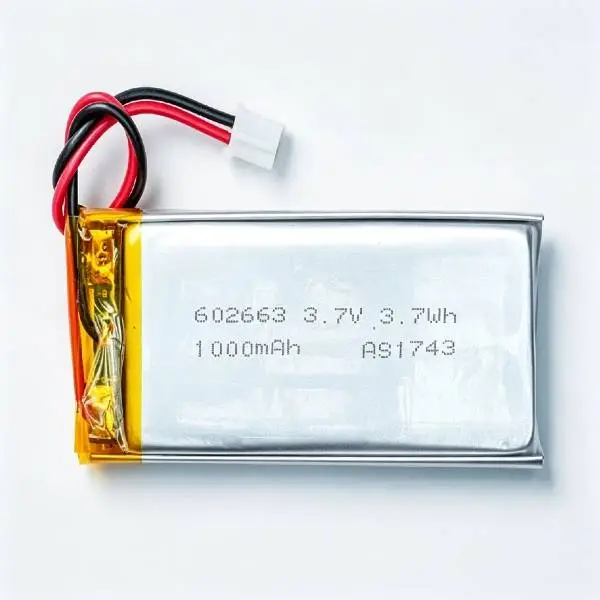

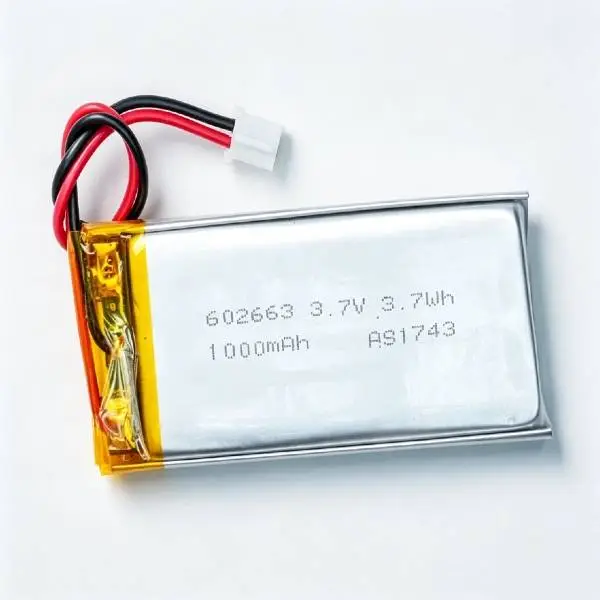

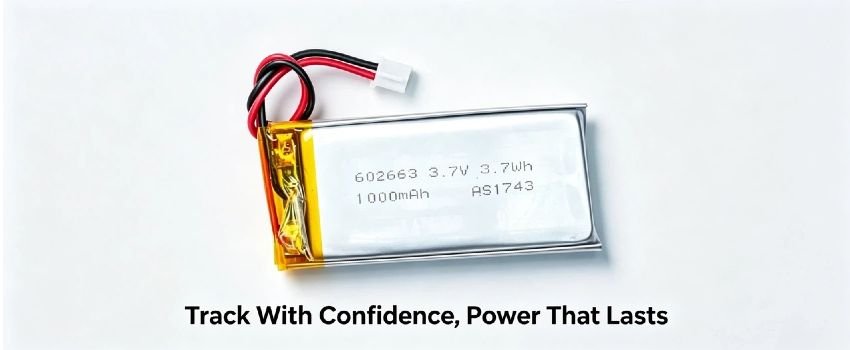

3.7V 1000mAh Lithium-ion Polymer Battery AS602663
Power your devices with confidence using the AS602663 Lithium-ion Polymer Battery. This high-performance 3.7V 1000mAh rechargeable battery pack is designed for extended runtime and reliable operation. Featuring a robust Protection Circuit Module (PCM) for safety, this battery combines high energy density with a compact form factor. Equipped with durable UL1007 26AWG wires and a standard PHR-2P connector, it is the ideal power solution for portable electronics, IoT devices, and consumer gadgets.
Description

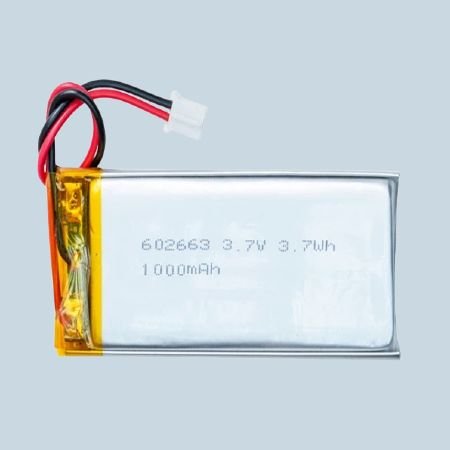

Model AS602663 – Lithium-ion Polymer Battery
Voltage: 3.7V | Capacity: 1000mAh (3.7Wh) | Size: 66×26.5×6.1mm
The AS602663 is a premium Lithium Polymer (LiPo) battery engineered to deliver consistent power in a slim, lightweight package. With a substantial 1000mAh capacity (3.7Wh), this battery allows your devices to run longer between charges, enhancing user experience.
Unlike standard cells, this unit comes fully assembled with a Protection Circuit, ensuring safety against over-voltage, over-current, and short circuits. The battery features a durable silver pouch casing and is terminated with high-quality UL1007 26AWG wires (30mm length) and a PHR-2P connector for easy integration into your existing hardware designs. Whether you are designing a new product or replacing an old battery, the AS602663 offers the perfect balance of size, weight, and power.
Technical Specifications
| Battery Type | Lithium-ion Polymer Battery |
| Part Number | AS602663 |
| Voltage @ Capacity | 3.7V @ 1000mAh (3.7Wh) |
| Protection Circuit | Yes (PCM Included) |
| Thermistor (NTC) | / |
| Wires | UL1007 26AWG 30mm |
| Connector | PHR-2P |
| Dimensions (L x W x T) | 66.0mm x 26.5mm x 6.1mm |
| Charge Current | 0.2C to 0.5C (Standard Charge) |
| Discharge Current | 0.5C to 1.0C (Continuous) |
| Storage Temperature | 15°C to +35°C |
Core Advantages
- ✔
High Energy Capacity: The 1000mAh capacity provides superior runtime for power-hungry applications compared to smaller cells. - ✔
Integrated Safety: Equipped with a built-in Protection Circuit, ensuring the battery operates within safe limits to prevent damage to the battery and the device. - ✔
Compact & Lightweight: The flat, rectangular LiPo design (6.1mm thin) fits easily into tight spaces where cylindrical batteries cannot. - ✔
Reliable Connectivity: Pre-installed PHR-2P connector and UL-rated wires simplify installation and ensure a secure electrical connection.
Perfect For Applications
Handheld game consoles, MP3/MP4 players, e-book readers.
GPS trackers, smart home sensors, wireless data loggers.Bluetooth speakers
Electric toothbrushes, facial cleansing brushes, massagers.
RC toy cars, drones, educational robotic kits.
Customization Services (OEM/ODM)
We understand that every device has unique power requirements. Our OEM/ODM customization services allow you to tailor the AS602663 to your specific needs:
- Custom Connectors: Replace standard PHR-2P with JST, Molex or other customized connectors.
- Wire Modifications: Adjust wire length and wire specification to match assembly demands.
- Branding: Print company logo and custom labels on battery surface.
- Battery Packs: Combine cells in series or parallel to upgrade voltage and capacity.
