7.4V 1800mAh Lithium-ion Polymer Battery AS704060
High-performance 7.4V 1800mAh Lithium-ion Polymer Battery pack (Model AS704060) delivering 13.32Wh of energy. This rechargeable lithium-ion battery features a robust protection circuit and heavy-duty 18AWG silicone wires, making it an ideal power solution for motorized devices and high-voltage applications.
Description

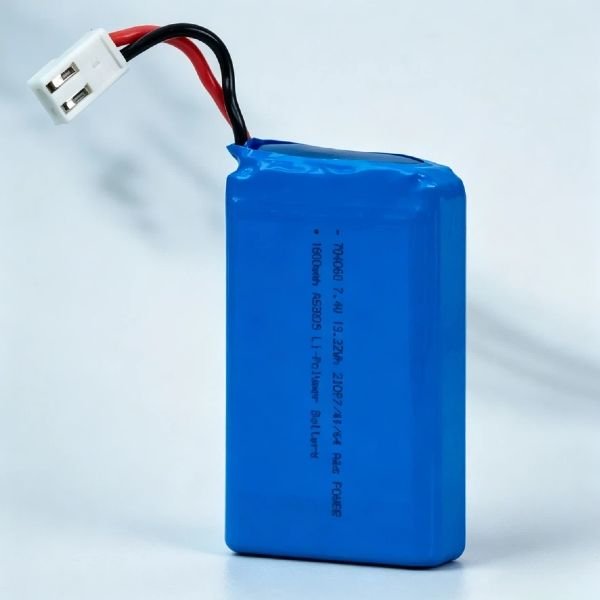

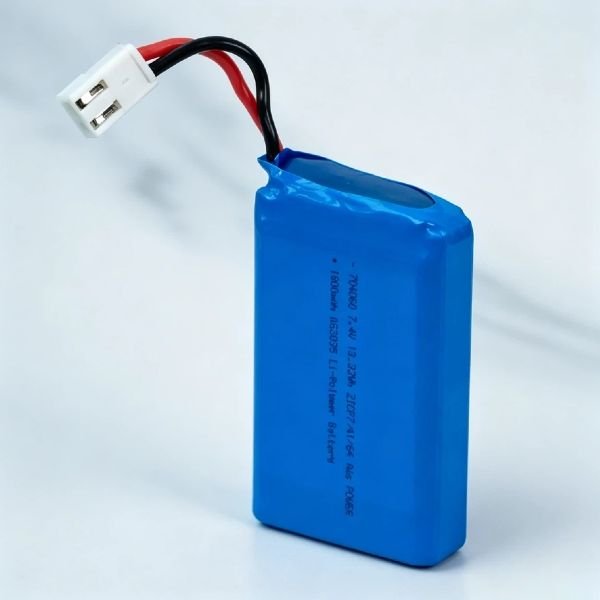

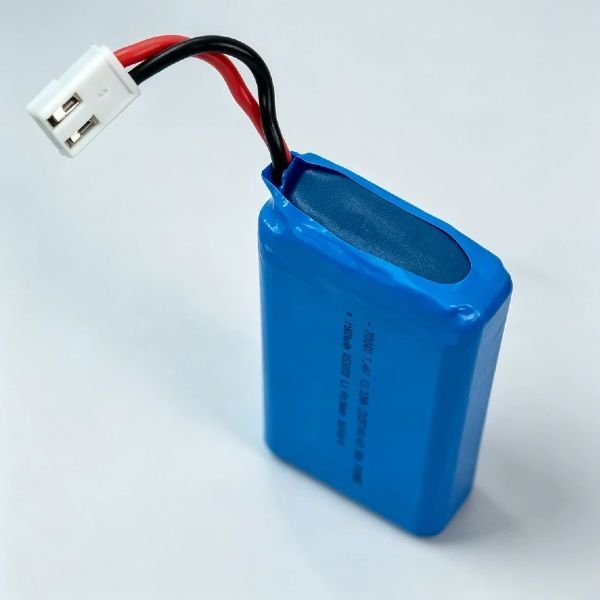

Model AS704060 – 7.4V Lithium-ion Polymer Battery
Voltage: 7.4V | Capacity: 1800mAh (13.32Wh) | Size: 64×41.5x15mm
The AS704060 is a premium 7.4V 1800mAh Lithium-ion Polymer Battery pack. Adopting series cell structure, it delivers elevated voltage output to meet special electronic power demands. Integrated protection circuit effectively guards against overcharge, overdischarge and short circuit. Fitted with heat-resistant UL3239 18AWG silicone wires and VHR-2P connector, it maintains steady current delivery under working load. Compact size enables easy installation inside handheld and portable motor devices.
Technical Specifications
| Battery Type | Lithium-ion Polymer Battery |
| Part Number | AS704060 |
| Voltage @ Capacity | 7.4V @ 1800mAh (13.32Wh) |
| Protection Circuit | Yes (PCM Included) |
| Thermistor (NTC) | / |
| Wires | UL3239 18AWG 30mm |
| Connector | VHR-2P |
| Dimensions (L x W x T) | 64.0mm x 41.5mm x 15.0mm |
| Charge Current | 0.2C to 0.5C (Standard Charge) |
| Discharge Current | 0.5C to 1.0C (Continuous) |
| Storage Temperature | 15°C to +35°C |
Core Advantages
- ✔
High Voltage Output: Stable 7.4V power suits devices requiring voltage higher than single cell batteries. - ✔
Heavy-Duty Wiring: Thick silicone wire bears large discharge current without overheating risk. - ✔
Enhanced Safety: Protective circuit prolongs service life and avoids battery damage in use. - ✔
High Energy Density: Lightweight pouch structure delivers long standby runtime for portable devices.
Perfect For Applications
Remote control cars, drones and model toys.
Massage guns, electric shavers and facial cleansing equipment.
Handheld fans, mini vacuum cleaners and portable POS terminals.
Small robots, smart locks and 7.4V DIY power equipment.
Customization Services (OEM/ODM)
Full customized solutions are available to match diverse equipment demands:
- Connector Customization: Replace VHR-2P with JST, Molex and other custom plugs.
- Wire Specification: Adjust wire length, thickness and type according to actual current needs.
- Branding: Custom logo and label printing on battery outer wrapping.
- Battery Assembly: Series and parallel cell configuration for different voltage and capacity.
