3.8V 30Ah 7C LiPo Drone Battery Cell AS-B088J9
The AS-B088J9 is a 3.8V 30Ah 7C LiPo drone battery cell delivering a balanced 292Wh/kg energy density with 7C continuous discharge (210A) and 10C peak (300A). This versatile lithium polymer battery cell is the ideal lipo battery for drone platforms requiring both endurance and power — from FPV drone flying to industrial drone inspection and long range drone missions. Build custom 6S drone battery and 12S drone battery packs with confidence. 500 cycles, 385g, ≤2mΩ. OEM/ODM custom drone battery pack assembly available.
Description
Model AS-B088J9 – 3.8V 30Ah 7C LiPo Drone Battery Cell
Voltage: 3.8V | Capacity: 30Ah (114Wh) | Energy Density: 292Wh/kg | Discharge: 7C Continuous / 10C Peak | Size: 189 x 88 x 11mm | Weight: 385g
The AS-B088J9 is a 3.8V 30Ah 7C LiPo drone battery cell engineered for UAV platforms that demand a balance of energy density and discharge performance. Delivering 292Wh/kg gravimetric energy density with 7C continuous discharge (210A) and 10C peak discharge (300A), this versatile lithium polymer battery cell is the ideal lipo battery for drone applications ranging from FPV flying to industrial inspection and long-range missions.
With a low internal resistance of ≤2mΩ, the AS-B088J9 minimizes voltage sag during high-thrust operations while maintaining efficient cruise performance. The wide 25mm tabs ensure reliable current transfer. Rated for 500 cycles and operating across -20°C to +60°C discharge, this cell is perfect for building custom 6S drone battery and 12S drone battery packs for FPV drone, industrial drone, long range drone, agricultural, and delivery UAV platforms. Whether you need a reliable drone battery cell for racing or a high-performance drone lithium polymer battery for commercial operations, the AS-B088J9 delivers the perfect balance of power and endurance.
Technical Specifications
| Battery Type | Lithium Polymer Battery (LiPo) Drone Cell |
| Part Number | AS-B088J9 |
| Nominal Voltage | 3.8V (High-Voltage) |
| Capacity | 30Ah (114Wh) |
| Gravimetric Energy Density | 292 Wh/kg |

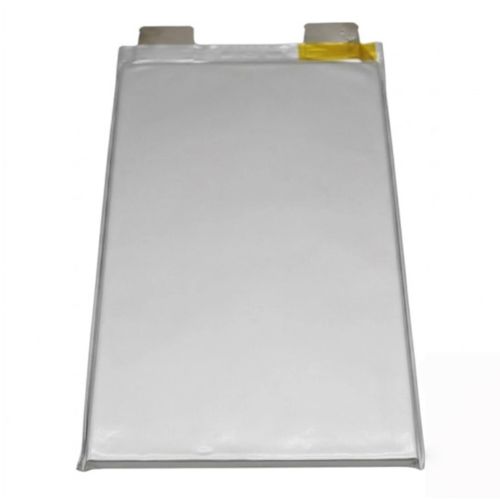

| Dimensions (L x W x T) | 189mm x 88mm x 11.0mm (max.) |

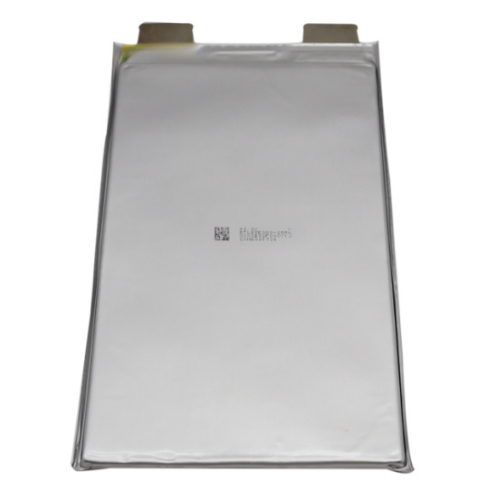

| Tab Width | 25mm |
| Cell Weight | 385g |
| Internal Resistance | ≤2mΩ |
| Max Continuous Charge Current | 2C (60A) |

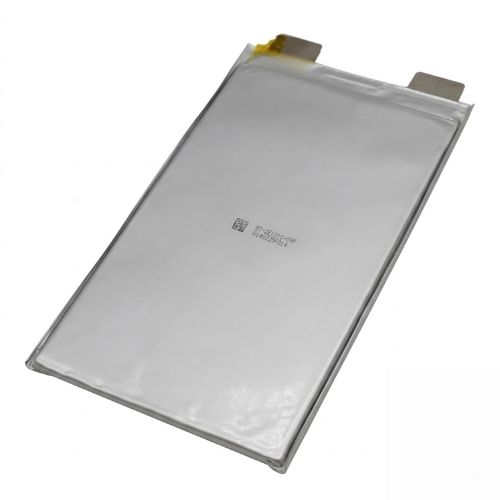

| Max Continuous Discharge Current | 7C (210A) |
| Max Instantaneous Discharge | 10C (300A) |
| Cycle Life | 500 cycles |
| Operating Temperature | Charge: 0°C ~ +45°C | Discharge: -20°C ~ +60°C |
| Configuration | Single Cell (1S) — Build 6S / 12S / 14S Drone Battery Packs |
| Primary Applications | FPV Drone | Industrial Drone | Long Range Drone | Agricultural | Delivery |
Why 7C + 292Wh/kg is the Perfect Balance for Drone Batteries
Most drone batteries force a trade-off: high-energy-density cells deliver long flight time but lack power for aggressive maneuvers, while high-rate cells deliver massive current but sacrifice endurance. The AS-B088J9 breaks this compromise with 292Wh/kg energy density AND 7C continuous (210A) discharge — enough power for FPV drone acrobatics and heavy-lift takeoff, while still delivering long flight time for industrial drone and long range drone missions.
| High-Energy-Density Drone Cell | 343~380 Wh/kg | 2C~3C discharge |
| High-Rate Drone Cell | 215~220 Wh/kg | 12C~15C discharge |
| AS-B088J9 Balanced Drone Cell | 292 Wh/kg | 7C discharge (Best of Both) |
Core Advantages
- ✔
Perfect Power-Endurance Balance: 292Wh/kg energy density combined with 7C continuous (210A) and 10C peak (300A) discharge — delivers both long flight time and aggressive maneuver capability for FPV drone and industrial drone platforms. - ✔
Ideal for 6S & 12S Drone Battery Packs: The 3.8V high-voltage platform and 30Ah capacity make this the perfect lipo battery for drone pack builders — assemble 6S drone battery (22.8V) or 12S drone battery (45.6V) packs with balanced power and endurance. - ✔
Low ≤2mΩ Internal Resistance: Minimizes voltage sag during 7C high-discharge operation, reducing heat generation and improving overall efficiency — reliable power delivery for both FPV drone racing and long range drone cruising. - ✔
500-Cycle Service Life: Rated for 500 charge-discharge cycles — provides long service life for commercial drone lithium polymer batteries used in industrial drone and agricultural operations, reducing total cost of ownership. - ✔
Wide Temperature Operation: Discharges reliably from -20°C to +60°C — suitable for long range drone missions in cold high-altitude and hot summer environments where standard drone batteries suffer voltage sag.
Perfect For Applications
FPV racing, freestyle acrobatics, high-speed maneuvering, cinematic FPV.
power line inspection, pipeline monitoring, infrastructure, bridge inspection.
aerial mapping, surveying, long-endurance missions, 3D modeling.
crop spraying drones, pesticide application, precision agriculture, medium payload.
package delivery drones, last-mile logistics, medical transport, commercial fleet.
Customization Services (OEM/ODM)
We offer complete custom drone battery pack assembly based on the AS-B088J9 cell:
- Pack Configuration: Custom series/parallel arrangements — 6S drone battery (22.8V), 12S drone battery (45.6V), 14S (53.2V), and higher voltage packs built to your specifications.
- BMS & Protection: Integrate smart BMS with cell balancing, temperature monitoring, and communication (CAN/SMBus/I2C) for your flight controller.
- Connectors & Wiring: XT60, XT90, AS150, EC5, or custom connectors with silicone wire harnesses optimized for your drone battery application.
- Enclosure & Mounting: Custom plastic or carbon-fiber enclosures with mounting brackets designed for your specific drone frame.
- Certification Support: UN38.3, MSDS, and air/sea shipping documentation for global distribution of your lipo battery for drone products.
