3.8V 30Ah 12C High-Rate Long-Cycle Drone Battery Cell AS-A6A5PO
3.8V 30Ah high-rate long-cycle drone battery cell (AS-A6A5PO) delivering 12C continuous discharge (360A) and 15C peak (450A) with an exceptional 1000-cycle lifespan. Features ultra-low ≤0.8mΩ internal resistance, 6C fast charging (180A), and 35mm wide tabs for high-current transfer. Ideal for agricultural spraying, heavy-lift cargo, large survey, firefighting, and public safety UAVs requiring sustained high power with long service life. OEM/ODM custom pack assembly available.
Description

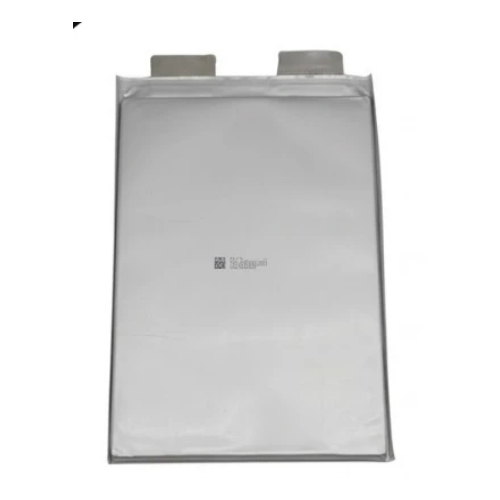

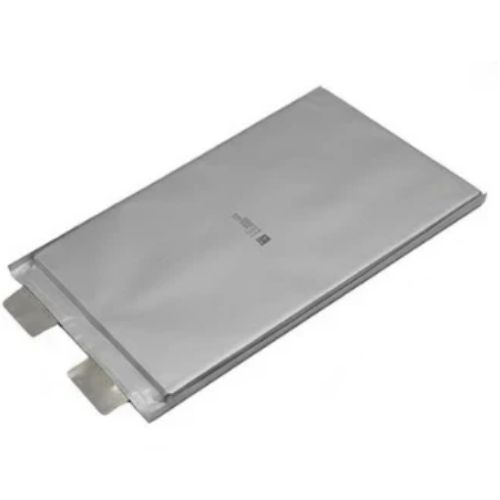

Model AS-A6A5PO – 3.8V 30Ah 12C High-Rate Long-Cycle Drone Battery Cell
Voltage: 3.8V | Capacity: 30Ah (114Wh) | Discharge: 12C Continuous / 15C Peak | Cycle Life: 1000 cycles | Weight: 510g
The AS-A6A5PO is a 3.8V 30Ah high-rate long-cycle drone battery cell engineered for commercial and industrial UAV platforms that demand both extreme power output and exceptional service life. Delivering 12C continuous discharge (360A) and 15C peak discharge (450A), this cell provides the sustained high current needed for heavy-lift operations, agricultural spraying, and large professional multirotors.
What sets the AS-A6A5PO apart is its remarkable 1000-cycle lifespan — unprecedented for a 12C high-rate cell — dramatically reducing the total cost of ownership for commercial drone fleets. With an ultra-low internal resistance of ≤0.8mΩ and wide 35mm tabs, it minimizes voltage sag and heat generation even under maximum load. It also supports 6C fast charging (180A) for rapid mission turnaround. Rated for operation across -20°C to +60°C, this cell is ideal for building custom high-rate drone packs for agricultural spraying, heavy-lift cargo, large survey, firefighting, and public safety platforms.
Technical Specifications
| Battery Type | High-Rate Long-Cycle Lithium Polymer Pouch Cell (LiPo) |
| Part Number | AS-A6A5PO |
| Nominal Voltage | 3.8V (High-Voltage) |
| Capacity | 30Ah (114Wh) |
| Gravimetric Energy Density | 220 Wh/kg |

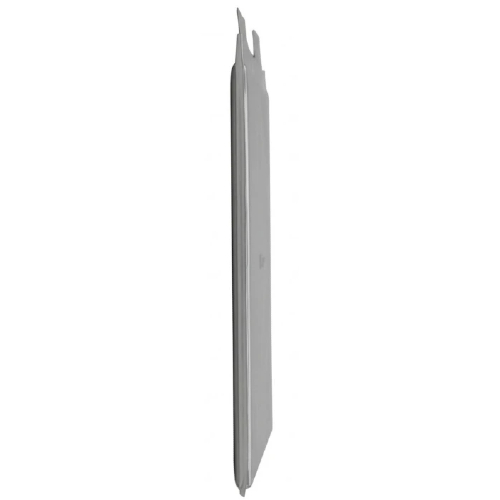

| Dimensions (L x W x T) | 230mm x 105mm x 10.6mm (max.) |
| Tab Width | 35mm (Wide High-Current Tabs) |
| Cell Weight | 510g |
| Internal Resistance | ≤0.8mΩ |
| Max Continuous Charge Current | 6C (180A) Fast Charge |
| Max Continuous Discharge Current | 12C (360A) |
| Max Instantaneous Discharge | 15C (450A) |
| Cycle Life | 1000 cycles |
| Operating Temperature | Charge: 0°C ~ +45°C | Discharge: -20°C ~ +60°C |
| Configuration | Single Cell (1S) — Build Custom High-Rate Drone Packs |
| Primary Applications | Agricultural Spraying | Heavy-Lift Cargo | Large Survey | Firefighting | Public Safety |
12C High-Rate + 1000 Cycles: The Best of Both Worlds
Most high-rate drone cells sacrifice cycle life for power — typically lasting only 300~500 cycles. The AS-A6A5PO delivers 12C continuous (360A) discharge while achieving an exceptional 1000 cycles — doubling the service life of comparable high-rate cells. For commercial drone fleets, this means 50% lower battery cost per flight hour.
| Standard High-Rate Cell | 10C~15C | 300~500 cycles |
| AS-A675H5 High-Rate | 15C | 500 cycles |
| AS-A6A5PO High-Rate Long-Cycle | 12C | 1000 cycles (2x lifespan) |
Core Advantages
- ✔
12C High-Rate Discharge: 12C continuous (360A) and 15C peak (450A) discharge — delivers massive sustained power for heavy-lift takeoff, agricultural pumping, and high-thrust operations without voltage sag. - ✔
Exceptional 1000-Cycle Life: Industry-leading cycle life for a 12C high-rate cell — doubles the service life of comparable cells, dramatically reducing total cost of ownership for commercial drone fleets. - ✔
Ultra-Low ≤0.8mΩ Resistance: The lowest internal resistance in our product lineup — minimizes heat generation and voltage drop under sustained high load, improving efficiency and extending cycle life. - ✔
6C Fast Charging: Supports 6C charging (180A) — recharge to 80% in approximately 10 minutes, maximizing mission uptime for high-volume commercial operations. - ✔
Wide 35mm High-Current Tabs: Oversized 35mm wide tabs handle 360A continuous current with minimal resistance and heat — essential for sustained high-rate operation in large drone packs. -
Perfect For Applications
large crop spraying drones, high-flow pesticide pumps, precision agriculture, heavy payload tanks.
heavy payload transport, industrial logistics, construction material delivery, large multirotors.
professional mapping drones, LiDAR survey, 3D modeling, heavy camera payloads.
fire extinguisher drones, search and rescue, disaster response, emergency payload delivery.
law enforcement patrol, crowd monitoring, border security, long-duration observation.
Customization Services (OEM/ODM)
We offer complete high-rate drone battery pack assembly based on the AS-A6A5PO cell:
- Pack Configuration: Custom series/parallel arrangements — 6S (22.8V), 12S (45.6V), 14S (53.2V), and higher voltage high-rate packs built to your specifications.
- BMS & Protection: Integrate high-current BMS rated for 300A+ continuous discharge, with cell balancing and temperature monitoring for your flight controller.
- Connectors & Wiring: XT90, AS150, EC8, QS8, or custom high-current connectors with silicone wire harnesses rated for sustained high-current operation.
- Enclosure & Mounting: Custom heat-dissipating enclosures with mounting brackets designed for your specific drone frame and cooling requirements.
- Certification Support: UN38.3, MSDS, and air/sea shipping documentation for global distribution.
