Introduction
Not all devices have space for large batteries. Smart rings, tiny earbuds, miniature sensors, and ultra‑compact wearables need power sources that are just as small as they are. That’s where small lipo batteries – sometimes called tiny lipo batteries – come in.
At A&S Power, we manufacture custom small lithium polymer batteries for OEM buyers worldwide. This guide covers everything you need to know about small Li‑Po batteries – from capacity and dimensions to applications and customization.
For a complete overview of our custom battery capabilities, check out our full guide: Custom Lithium Polymer Battery – OEM/ODM Solutions for IoT, Wearables & Medical Devices.
If you’re new to lipo batteries, start with our Lipo Battery 101 guide for the basics.
What is a Small Lipo Battery?
A small lipo battery is a compact lithium polymer cell designed for devices where space is extremely limited. These batteries typically range from 10mAh to 500mAh in capacity and can be as thin as 0.4mm and as small as a fingernail.
Key characteristics:
| Feature | Description |
|---|---|
| Capacity range | 10mAh – 500mAh |
| Thickness | 0.4mm – 4.0mm |
| Voltage | 3.7V nominal |
| Shape | Fully customizable |
| Weight | 0.5g – 10g |
| Applications | Tiny wearables, TWS earbuds, IoT sensors |

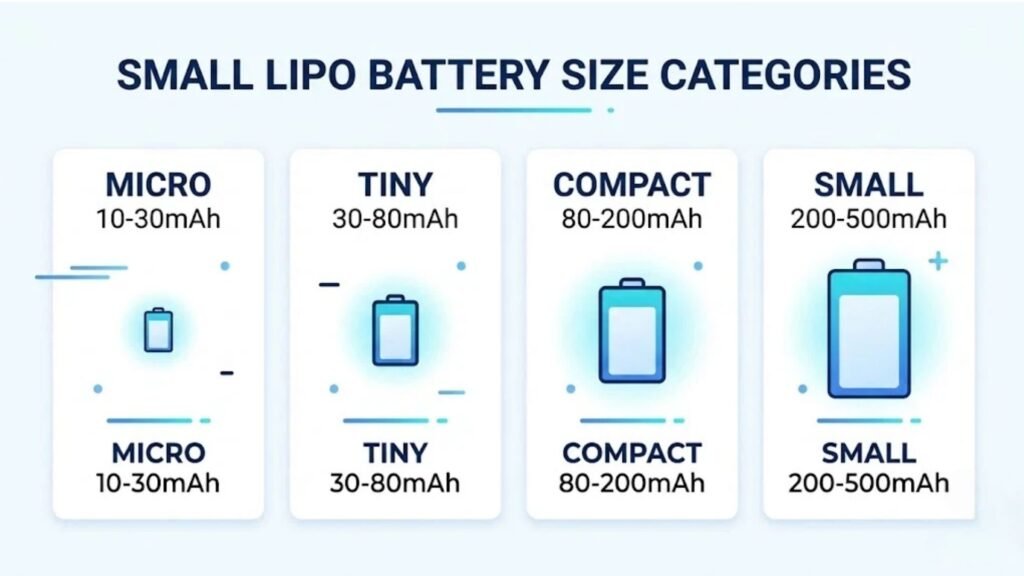

Small Lipo Battery Size Guide
| Size Category | Dimensions (approx.) | Typical Capacity | Common Applications |
|---|---|---|---|
| Micro | 5mm × 10mm × 2mm | 10‑30mAh | Smart rings, micro sensors, hearing aids |
| Tiny | 8mm × 15mm × 3mm | 30‑80mAh | TWS earbuds, smart glasses, small trackers |
| Compact | 12mm × 20mm × 4mm | 80‑200mAh | Fitness trackers, smartwatches, medical patches |
| Small | 15mm × 30mm × 4mm | 200‑500mAh | Portable sensors, compact IoT devices |
When to Choose a Small Lipo Battery:
- Space‑constrained devices: If your product has limited internal space, a small lipo battery allows you to maximize battery capacity without increasing device size.
- Lightweight requirements: For wearable devices where weight is critical, small lipo batteries offer the best power‑to‑weight ratio.
- Discrete placement: Some devices require batteries that can fit into unusual shapes – small pouch cells can be customized to fit almost any enclosure.
- Extended standby time: Even with small capacity, efficient power management can provide days or weeks of standby time for IoT sensors and medical patches.
Applications for Small Lipo Batteries
| Industry | Applications | Why Small Battery |
|---|---|---|
| TWS Earbuds | True wireless stereo earbuds | Must fit inside tiny earbud housings |
| Smart Rings | Fitness rings, payment rings | Ultra‑compact form factor |
| Hearing Aids | Rechargeable hearing aids | Must be discreet and lightweight |
| IoT Sensors | Environmental sensors, asset trackers | Small footprint for discrete placement |
| Medical Devices | Smart patches, CGM monitors, ECG patches | Patient comfort requires minimal size |
| Smart Glasses | AR/VR glasses, smart eyewear | Must fit into slim frames |
| Smart Cards | Payment cards, access cards | Must fit into standard card thickness |
| Stylus Pens | Active stylus pens for tablets | Must fit inside slim pen bodies |
Customization Options for Small Lipo Batteries
As a custom small battery manufacturer, we offer extensive customization:
1. Custom Dimensions
- Thickness: 0.4mm – 4.0mm
- Length and width: Any size to fit your device
2. Custom Capacity
- 10mAh – 500mAh to match your device‘s runtime
3. Custom Shape
- Square, rectangular, circular, or custom geometry
- Stepped designs for irregular spaces
4. Custom Terminals
- Ultra‑thin flat contacts
- Wire leads with custom length
- Solder pads for direct PCB mounting
5. Custom Labeling
- OEM branding with your logo
6. Protection
- Built‑in PCM for overcharge, over‑discharge, short‑circuit protection
Design Considerations for Small Batteries
1. Capacity is limited
Small batteries have limited capacity. Design your device for ultra‑low power consumption to maximize runtime.
2. Power consumption must be minimized
- Use low‑power MCUs and sensors
- Optimize software for power efficiency
- Use intermittent operation (wake up, measure, transmit, sleep)
3. Mechanical integration
- Small batteries are fragile – design protective mounting
- Consider potting or encapsulation for durability
4. Connector selection
- Choose ultra‑small connectors (JST, Molex Pico, or direct solder)
- Balance connector size with ease of assembly
5. Shelf life
- Small batteries have limited shelf life
- Plan for just‑in‑time inventory
Small Lipo Battery vs Standard Lipo – Comparison
| Feature | Small Lipo | Standard Lipo |
|---|---|---|
| Capacity | 10‑500mAh | 500‑10,000mAh+ |
| Thickness | 0.4mm – 4.0mm | 3.0mm – 8.0mm |
| Weight | 0.5g – 10g | 10g – 200g+ |
| Applications | Micro devices, wearables | Smartphones, speakers, laptops |
| Customization | High | High |
| Cost per mAh | Higher | Lower |
| Best for | Space‑constrained devices | Standard devices |
Frequently Asked Questions
1. What is the smallest lipo battery available?
The smallest commercially available lipo batteries are around 5mm × 10mm × 2mm with capacities of 10‑20mAh. We manufacture custom small batteries to match your exact size requirements.
2. How long does a small lipo battery last?
Under normal use, a small lipo battery typically lasts 300‑500 cycles (2‑3 years of regular use).
3. Can I get a custom shape for a small lipo battery?
Yes. We can manufacture small lipo batteries in virtually any shape – square, rectangular, circular, or custom geometry.
4. What is the thinnest small lipo battery available?
The thinnest commercially available lipo batteries are 0.4mm thick.
5. Can small lipo batteries be used in medical devices?
Yes. We manufacture small lipo batteries for medical devices with full compliance documentation.
6. What is the MOQ for small lipo batteries?
MOQ depends on the battery type and complexity. Contact us for a custom quote based on your specific requirements.
7. What is the difference between a small lipo battery and a standard lipo battery?
The main difference is size and capacity. Small lipo batteries typically range from 10mAh to 500mAh and are designed for compact devices. Standard lipo batteries usually start at 500mAh and are used in larger devices. Small lipo batteries also have thinner profiles, often as low as 0.4mm.
Custom Small Lipo Batteries from A&S Power
At A&S Power, we manufacture custom small lithium polymer batteries for OEM buyers across multiple industries. From TWS earbuds and smart rings to medical patches and IoT sensors, we deliver tailored solutions with safety and performance in mind.
- ✅ Capacities from 10mAh to 500mAh
- ✅ Thickness from 0.4mm to 4.0mm
- ✅ Custom shapes and sizes
- ✅ UL, CE, RoHS, and UN38.3 certification
- ✅ OEM labeling and packaging
- ✅ Engineering support from concept to production
